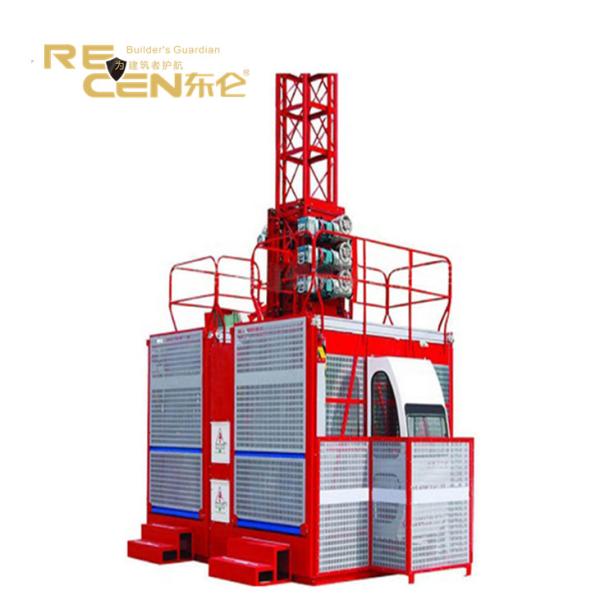

SC200 Construction Building Hoist Single Cage Wire Rope Gjj Customized

    Buy cheap SC200 Construction Building Hoist Single Cage Wire Rope Gjj Customized from wholesalers

    Buy cheap SC200 Construction Building Hoist Single Cage Wire Rope Gjj Customized from wholesalers
    • Buy cheap SC200 Construction Building Hoist Single Cage Wire Rope Gjj Customized from wholesalers
    • Buy cheap SC200 Construction Building Hoist Single Cage Wire Rope Gjj Customized from wholesalers

    SC200 Construction Building Hoist Single Cage Wire Rope Gjj Customized

    Ask Lasest Price
    Model Number : SC200
    Certification : CE, EAC, ISO
    Payment Terms : T/T, L/C, Western Union
    Delivery Time : 15-20 days
    Price : Negotiable
    • Product Details
    • Company Profile

    SC200 Construction Building Hoist Single Cage Wire Rope Gjj Customized


    Suspended Gondola Aluminum Alloy ZLP630 Construction Working Platform Customizad


    Highlight


    • Power saving running smoothly at starting and braking
    • Running at various speed up to 120m/min
    • Frequency convertible control system
    • Low mechanical wear
    • Optional hot deep galvanized cage

    Parameter


    Each cage load capacity2000kg
    Lifting speed36m/min or 63m/min or 96m/min
    Mast sectionPaint or hot dipping zinc
    CageSingle cage or twin cage
    Recommended cage inner dimension (LxWxH)(m)

    2.5x1.3 x2.5; 3.0x1.3x2.5; 3.2x1.5x2.5; 3.6x1.5x2.5; 3.8x1.5x2.5; 4.0x1.5x2.5; 4.2x1.5x2.5,

    cage dimension is according to requirement of customer and special project.

    Motor and reducing deviceMade in China, can be SEW Germany according to requirements.
    CounterweightWith counterweight or without counterweight
    The colors of cageYellow, or red, or blue
    Other each cage load capacity for your to choose1000kg, 2000kg, 2700kg, or 3200kg

    ​


    • Other Model

    SPECIFICATIONS FOR OUR BUILDING HOIST
    ModelCapacity(kg)Lifting Speed(m/min)Motor Power(KW)

    Single cage

    		SC100100036, 63 or 962*11
    SC200200036, 63 or 963*11
    SC270270036, 63 or 963*15

    double cage

    		SC100/1002*100036, 63 or 962*2*11
    SC200/2002*200036, 63 or 962*3*11
    SC270/2702*270036, 63 or 962*3*15


    • Spare Parts
